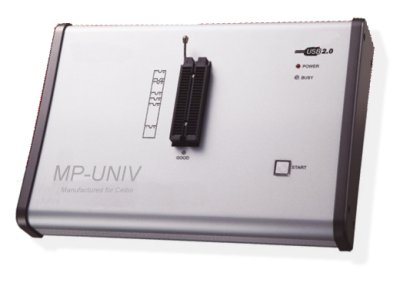

MP-UNIV Universal Programmer

FEATURES

  • Flexible and easy to use menu-driven software.
  • Auto search device select function supports E(E)PROMs & Microcontrollers.
  • Device insertion test identifies improperly inserted device before programming.
  • Check for incorrect device insertion, backward, incorrect position, and poor pin contact.
  • High-speed device function tests and user creatable test library.
  • Device Operations: Read, Blank check, Program, Verify, Checksum, Data compare, Security, Auto(blank check-program-verify).
  • Support real 5, 3.3, and 2.7 volt for programming power.
  • Display programming parameters on the screen.
  • Set device/buffer address ranges before programming devices.
  • Extensive on-line F1 help system provides text and graphics.
  • Auto Programming for production programming.
  • User-changeable programming parameters.
  • Built-in editor for both buffer date and test vectors.
  • MACRO commands supports batch mode operation.
  • Support POF and JEDEC, Intel Hex, Motorola S Records, Tekhex, and binary file formats with Load, Edit, and Save commands.
  • Distribution of 16- and 32- bit data into 8-bit portions.
  • USB interface.
  • Two on-board FPGAs for extremely fast communication.
  • Supports real 5, 3.3, and 2.7 volt for programming power.
  • Detects all pin locations for poor or damaged pin contacts.
  • Internal universal power supply,110-240 VAC (no separate power supply required in foreign country).
  • Current limiting protects hardware circuit from improperly inserted or defective chips and operation errors.
  • ADP-EE Universal programmer adapter: 48-Dip, 44-PLCC, 44-QFP and 32-PLCC as standard
  • True universal pin driver hardware.
  • Hardware diagnostic program exams all 48-pin drivers before using programmer.

For more information:
PDF document ( 856k )
Price List - USD ( 273k )
Price List - EUR ( 270k )


Microcontrollers manufacturers supported by MP-UNIV:

Atmel Dallas Intel Philips Infineon WSI

Atmel | Dallas | Intel | Philips | Infineon | WSI | Atmel W&M

(Product, company names and logos are trademarks of their respective organizations)
